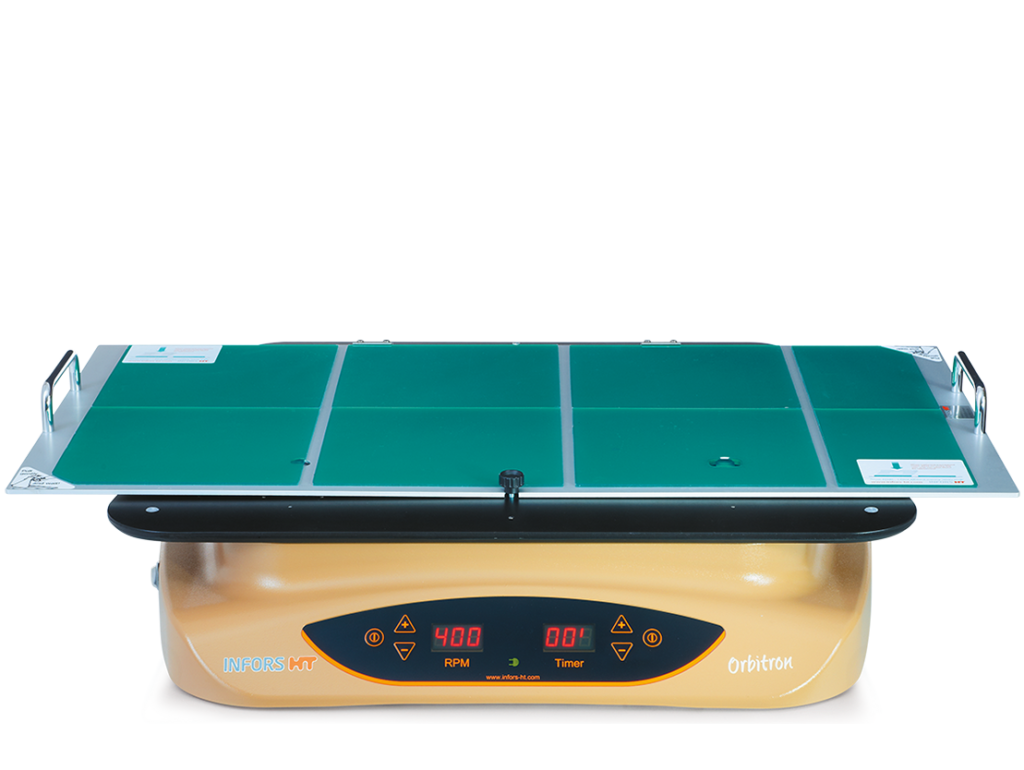

Table shaker for continuous operation
A shaker for demanding continuous operation, even with maximum load. The extraordinarily stable, splash-proof Orbitron is suitable both for daily operations in the lab and for use in climate-controlled rooms.
Up to 31 kg loading capacity
The Orbitron is the powerhouse of benchtop shakers and can be loaded with up to 31 kg of materials. Select from two different tray sizes. The clever quick-lock system lets you change trays in no time.
| Dimensions (W x D x H) | 640 mm x 600 mm x 150 mm |
|---|---|
| Number of batches | 197 |
| Volume | 21 L |
| Maximum load | 31 kg |
| Maximum expansion | n/a |
| Rotation speed | 20 – 550 min-1 |
| Shaking throw | 25 mm |
| Temperature | 4 °C bis 65 °C |
| Standard parameters | Rotation speed, timer |
| Optional parameters | n/a |
| Ambient humidity (rH) | n/a |
| Power supply | 115/230 V ± 10 %, 50–60 Hz |
| Tray capacity | Shake flask size M tray (850 mm x 470 mm) / N tray (480 mm x 420 mm) 25 mL=197/105 50 mL=131/69 100 mL=91/46 250 mL=48/25 500 mL=31/15 1000 mL=19/10 2000 mL=136 3000 mL=9 4000 mL=8 5000 mL=6 |
