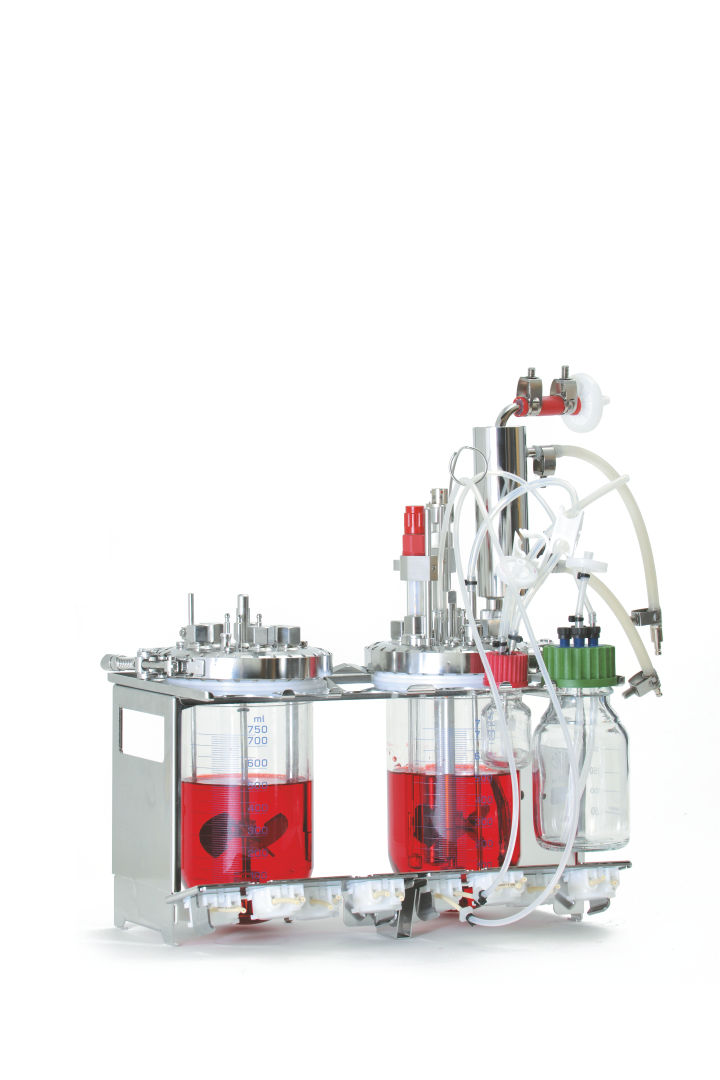

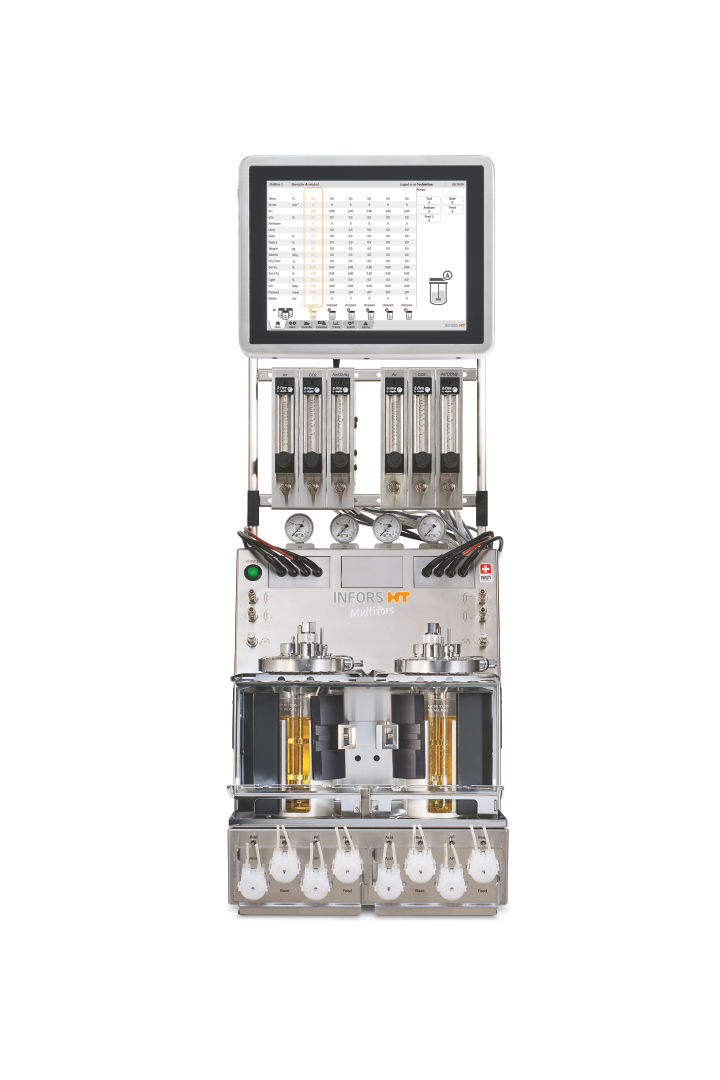

Parallel bioreactor system for small-scale bioprocesses
With Multifors 2 you can work with up to six bioprocesses in parallel. Thanks to a selection of preconfigured packages and a variety of connection possibilities and options, you will be ideally equipped for optimizing sophisticated bioprocesses on a small scale.
| Vessels | 0,4 L / 0,75 L / 1,4 L |
|---|---|
| Working volume | 0,15–0,25 L / 0,18–0,5 L / 0,32–1 L |
| Dimensions (W x D x H) | 350 mm x 520 mm x 960 mm |
| Drive | Magnetic drive to 1600 min-1 |
| Temperature | Coolant temperature + 5 °C to 70 °C |
| Gassing per vessel | Up to 4 rotameters oder MFCs up to 2 min-1 (vvm) |
| Pumps per vessel | 3 fixed, 1 variable, optional 1 additional variable |
| Pump performance | Depending on the design from 0,0012 mL min-1 to 3,46 mL min-1 |
| Ports per vessel | 7 mm 4x 10 mm 4x 12 mm (Pg13,5) max. 5x |
| Connectivity | OPC XML DA via Ethernet |

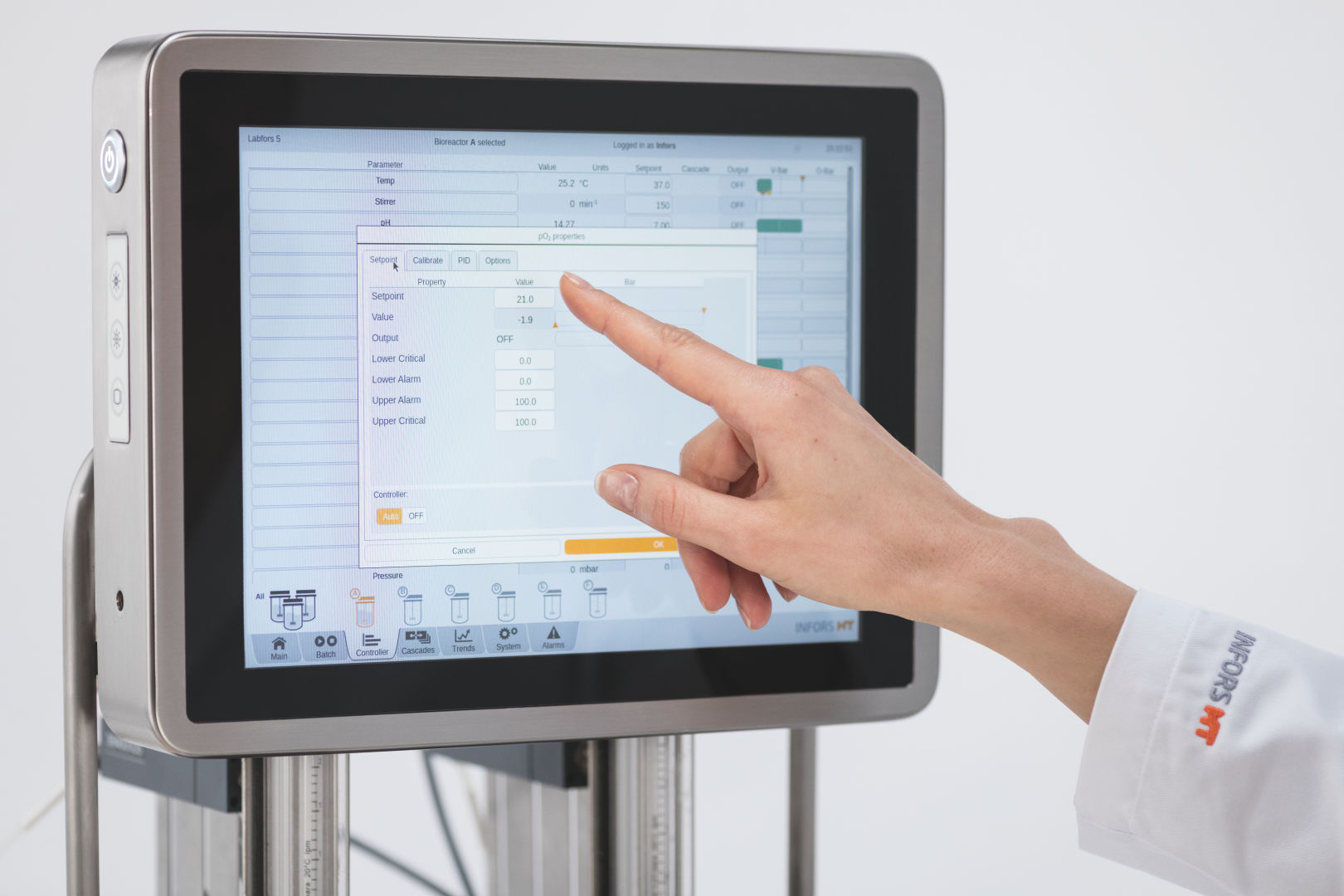

| Parallel operation via touch screen controller | 3 base units, resp. 6 vessels |
| Sterilisation | Autoclave |
