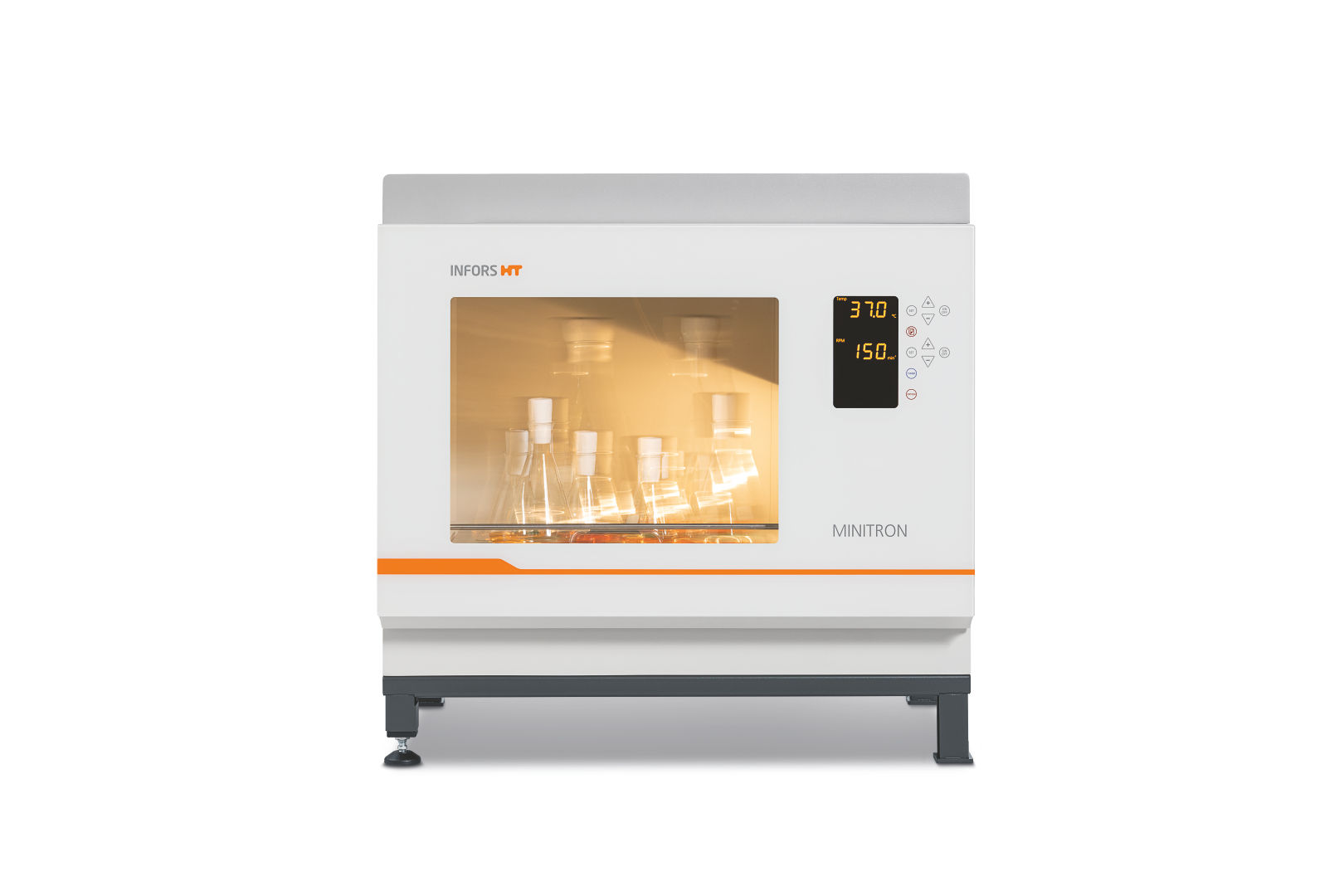

Compact incubation shaker for every area of application
An all-round genius in a small space. In terms of capacity, the Minitron is the little sister of the Multitron incubator shaker, but it offers the same variety of application possibilities for microbial, animal, and plant cell cultures.
From standard experiments with microorganisms to complex cultivations of animal and plant cells, the Minitron has been designed to perform a comprehensive range of applications. Each Minitron is configured to you exact needs whilst the design ensures for a staightforward upgrade if required.
| Dimensions (W x D x H) | 800 mm x 625 mm x 700 mm (one unit) / 800 x 625 x 1490 mm (two units) |
|---|---|
| Maximum working height | 173 mm (one unit) / 960 mm (two units) |
| Number of batches | 105 per unit |
| Volume | 9 L per unit |
| Maximum load | 12 kg per unit |
| Maximum expansion | Up to 2 units can be stacked |
| Rotation speed | 20–400 min-1 depending on load and stacking |
| Shaking throw | 25 mm / 50 mm |
| Temperature | 5 °C above ambient temperature to 65 °C 16 °C below AT to 65 °C with cooling; Minimum temperature 4 ° C |
| Standard parameters | Temperature, rotation speed, timer |
| Optional parameters | Cooling, Humidity, CO2, light intensity |
| Ambient humidity (rH) | Up to 85 % non-condensing (setpoint 37 °C / 25°C AT) |
| Power supply | 115/230 V ± 10 %, 50/60 Hz |
| Interface | Ethernet |
| Tray capacity | Shake flask sizeN tray (480 mm x 420 mm) 25 mL=105 50 mL=69 100 mL=46 250 mL=25 500 mL=15 1000 mL=10 2000 mL=6 3000 mL=5 4000 mL=3 5000 mL=3 |
