Labfors 5

High-end bench-top bioreactor for all applications

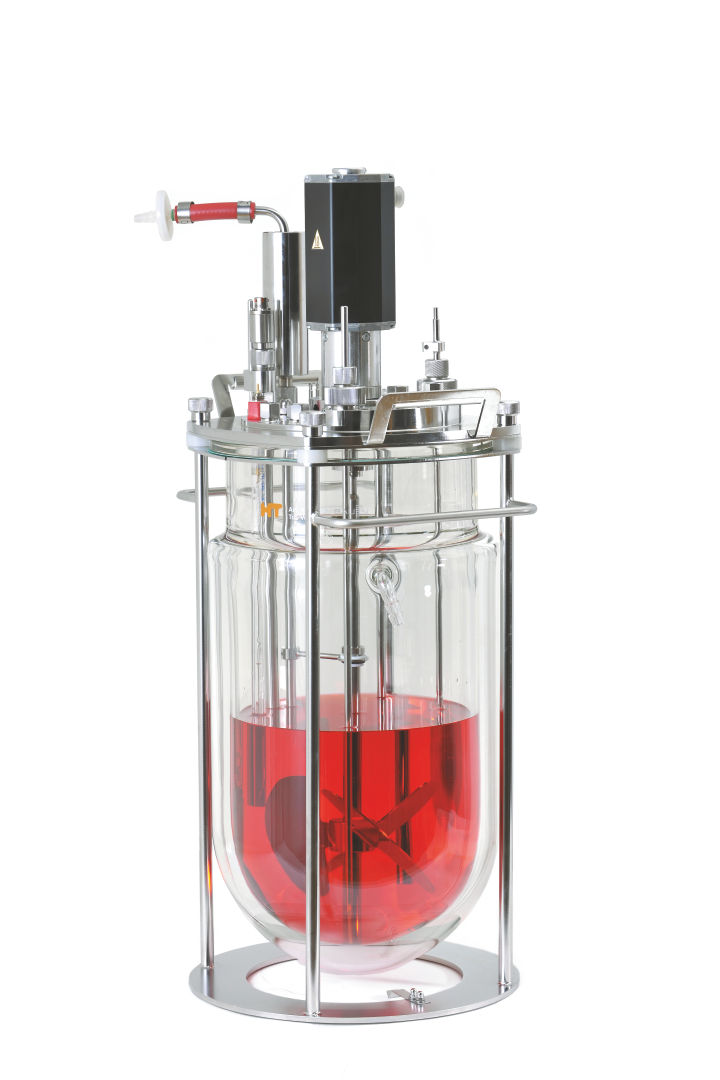

labfors-5-bioreactor-vessel-cellculture-lateral.tif

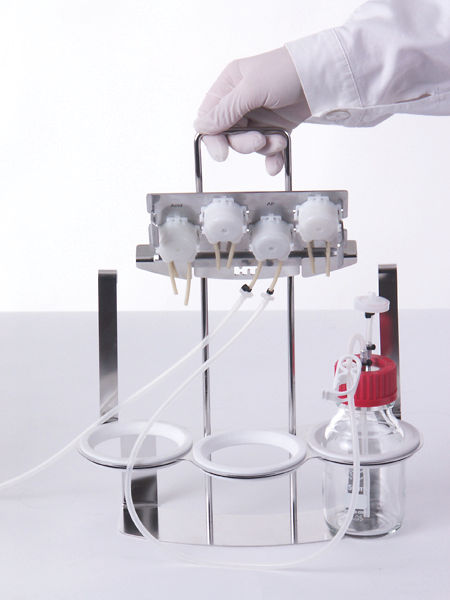

labfors-5-bioreactor-reagent-bottle-pump-holder.tif

A truly universal bioreactor

The Labfors 5 is suitable for microorganisms, phototrophic organisms as well as solid subtrates and enzymatic bioprocesses. There are almost no limits to its uses.

Make six out of one

Would you like to organise your laboratory work more efficiently? Then connect your touchscreen control to up to six Labfors 5 bioreactors. You can operate them simultaneously, and save time by, for example, calibrating all pH or pO₂ sensors at the push of a button.

Technical Details

Vessels	2 L / 3,6 L / 7,5 L / 13 L
Working volume	0,5–1,2 L / 0,5–2,3 L / 1–5 L / 2,2–10 L
Dimensions (W x D x H)	464 mm x 462 mm x 996 mm
Drive	Direct drive up to 1500 min^–1
Temperature	Coolant temperature + 5 °C bis 70 °C bzw. 95 °C
Gassing per vessel	Up to 5 rotameters or MFCs up to 2 min^-1 (vvm)

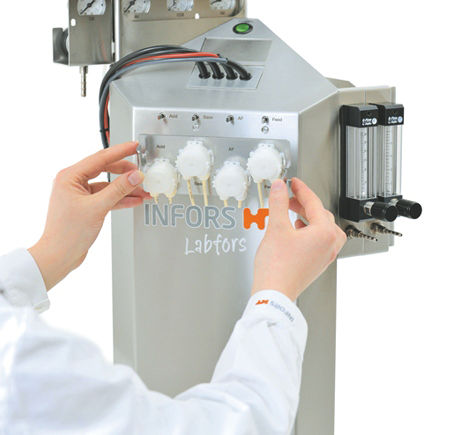

Pumps per vessel	3 fixed, 1 variable, optional 1 additional variable 3
Pump performance	Depending on version, from 1,2 μl min^–1 to 17,1 ml min^–1
Ports per vessel	7 mm max. 4x 10 mm 2x 12 mm (Pg13,5) max. 6x 19 mm max. 6x
Connectivity	OPC XML DA via Ethernet
Parallel operation via touch screen controller	up to 6 vessels
Sterilisation	Autoclave or LabCIP (microbial version)
