Unpack and get started
Award-winning design for practical applications
Powerful pO2 control with up to five mass-flow controllers (MFCs)
Also included for beginners: a “cookbook” explaining bioprocess fundamentals, incl. formulations.

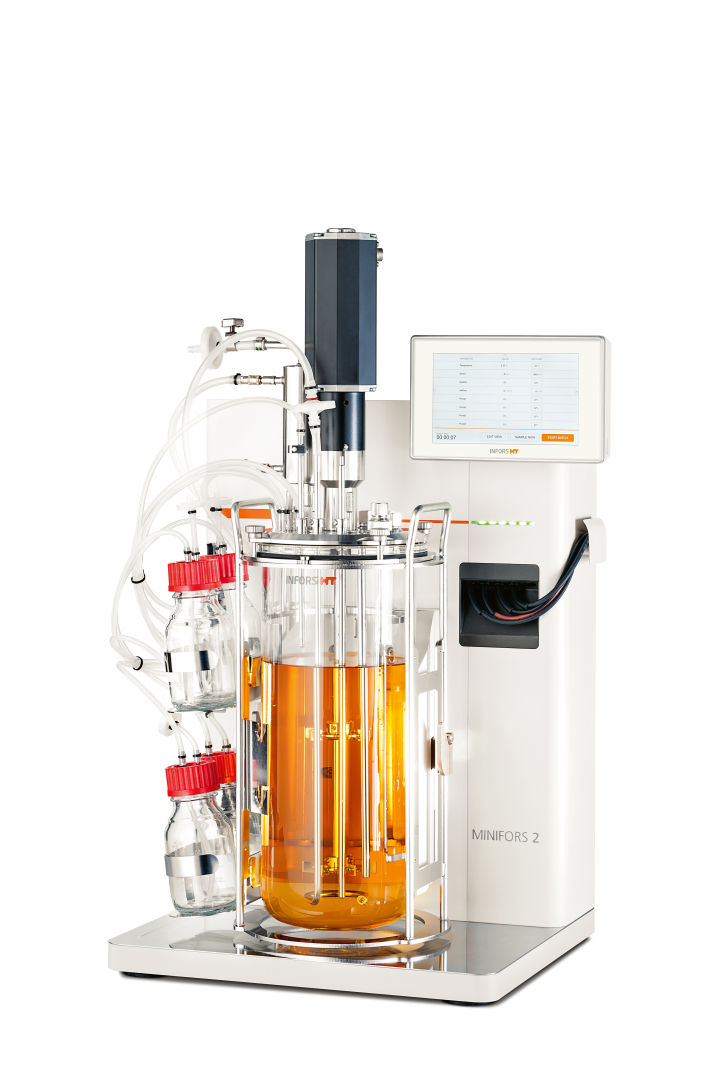

The Minifors 2 is a compact and easy-to-use bioreactor with a full range of application possibilities.
It is a complete package that enables both, beginners and experienced users to easily perform applications.
| Vessels | 1.5 L / 3 L / 6 L |
|---|---|
| Working volume | 0.3–1.0 L / 0.6–2.0 L / 1.1–4.0 L |
| Dimensions (W x D x H) | 455 mm x 375 mm x 740 mm |
| Drive | Version for Microorganisms: 150 min-1 to 1600 min-1 Version for cell cultures: 24 min–1 to 600 min-1 |
| Temperature | Coolant temperature + 10 °C bis 60 °C |
| Gassing per vessel | Version for microorganisms: 2 MFCs up to 2 min-1, version for cell cultures: 5 MFCs up to 0.15 min-1 |
| Pumps per vessel | 4 x configurable (fixed or variable speed) ex-works: 3 x fixed (acid, base, anti-foam), 1 x variable (feed) |
| Pump performance | 0.0034 to 3,52 mL min-1 (standard), 0.017 to 16,13 mL min-1, 0.0012 to 1.12 mL min-1 |
| Ports per vessel | 7,5 mm 4x 10 mm 4x 12 mm (Pg13,5) max. 7x |
| Connectivity | OPC UA via Ethernet |
| Parallel operation via touch screen controller | 1 unit |
| Sterilisation | Autoclave |
