Electronic Pipettes

Comparing All 1 To 384 Channel Solutions

There is an INTEGRA electronic pipette for every lab, every application, every budget, and every person. The chart below will help you find the right instrument for you.

1 - 16 Channel

24, 96 And 384 Channel

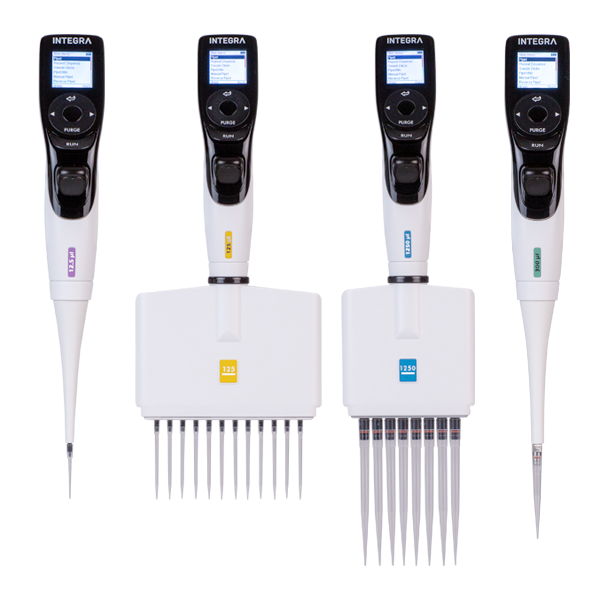

VIAFLO

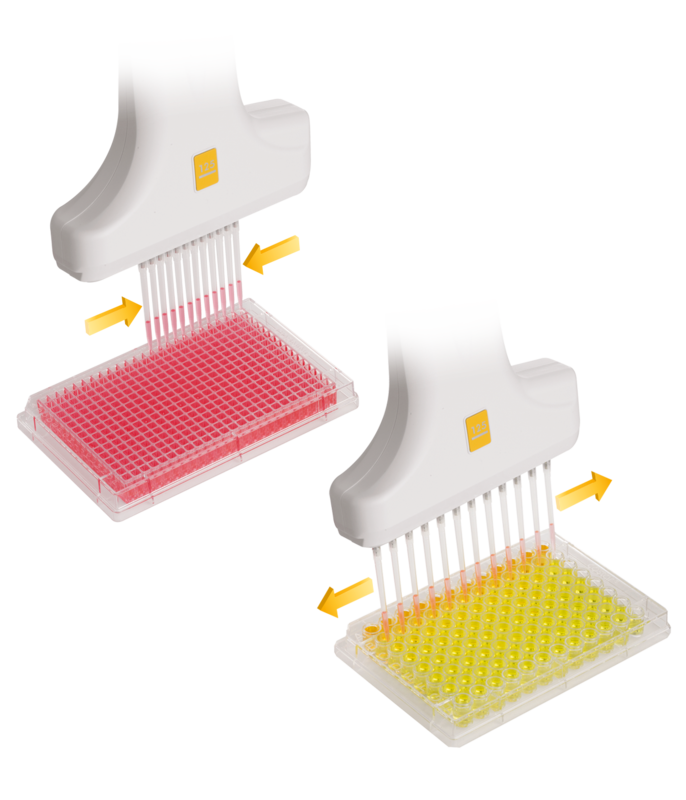

VOYAGER

MINI 96

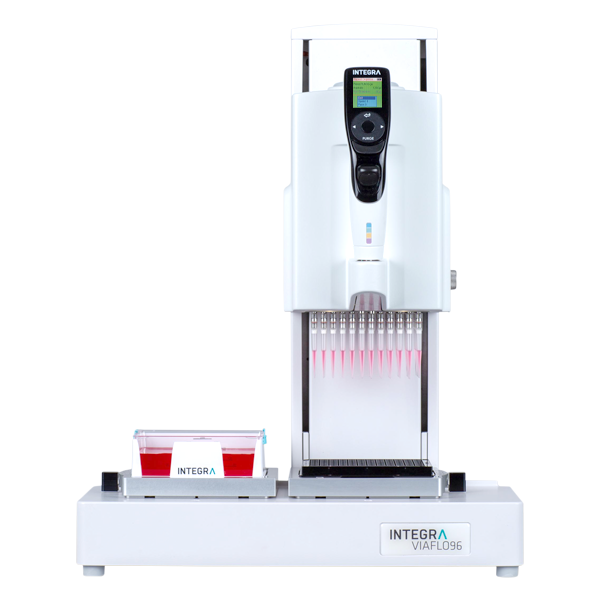

VIAFLO 96

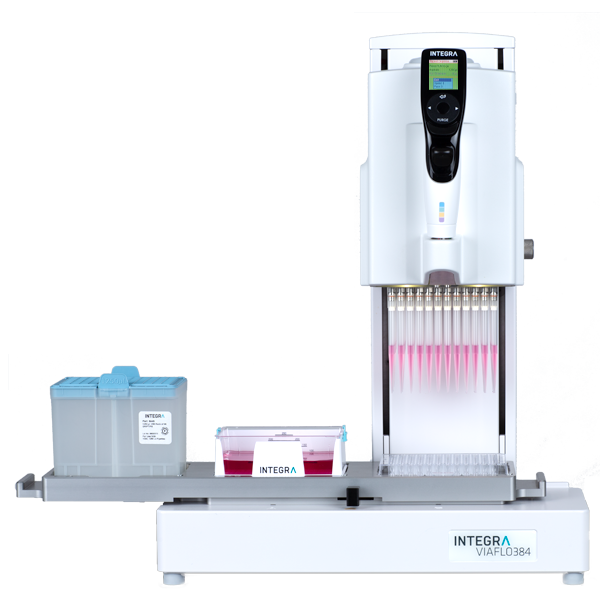

VIAFLO 384

1 – 16 Channel
Electronic Pipette

4 – 12 Channel
Adjustable Tip Spacing
Electronic Pipette

96 Channel
Portable Electronic Pipette

24 and 96 Channel
Handheld Electronic Pipette

24, 96, and 384 Channel
Handheld Electronic Pipette

Channels & Volumes
Channels	1, 8, 12, 16	4, 6, 8, 12	96	24, 96	24, 96, 384
Volume range (µL)	1-12 channel 0.5 – 12.5 2 – 50 5 – 125 10 – 300 50 – 1250 100 -5000* * Single channel only 16 channel 0.5 – 12.5 2 – 50 5 – 125	4 & 6 channel 10 – 300 50 – 1250 8 channel 0.5 – 12.5 2 – 50 5 – 125 10 – 300 50 – 1250 12 channel 0.5 – 12.5 2 – 50 5 – 125	96 channel 0.5 – 12.5 5 – 125 10 – 300 50 – 1250	24 channel 10 – 300 50 – 1250 96 channel 0.5 – 12.5 2 – 50 5 – 125 10 – 300 50 – 1250	24 channel 10 – 300 50 – 1250 96 channel 0.5 – 12.5 2 – 50 5 – 125 10 – 300 50 – 1250 384 channel 0.5 – 12.5 2 – 50 5 -125
Compatible Plates
Number of wells	Wide range with single channel pipettes. 96 and 384 well plates with multichannel pipettes.	24, 48, 96, 384	96, 384	24, 96, 384	24, 96, 384, 1536
Applications
Filling plate by column/row	✓	✓	✓ by row (8 channel), optional plate holder needed	✓ by column or row, standard	✓ by column or row, standard
Filling full plates in one dispense	no	no	✓ 96 well plates	✓ 24 and 96 well plates	✓ 24, 96, and 384 well plates
Plate to plate copies	✓ one column or row at a time	✓ one column or row at a time	✓	✓	✓
Sample addition from tubes	✓ single channel only	✓ ideal	no	no	no
Reformating plates (96 to 384)	✓	✓ ideal	✓	✓	✓ ideal
Serial dilutions	✓	✓	✓ optional plate holder needed	✓	✓
